18U-SC7 With patented top conveyor belt drive

with patented top conveyor belt drive

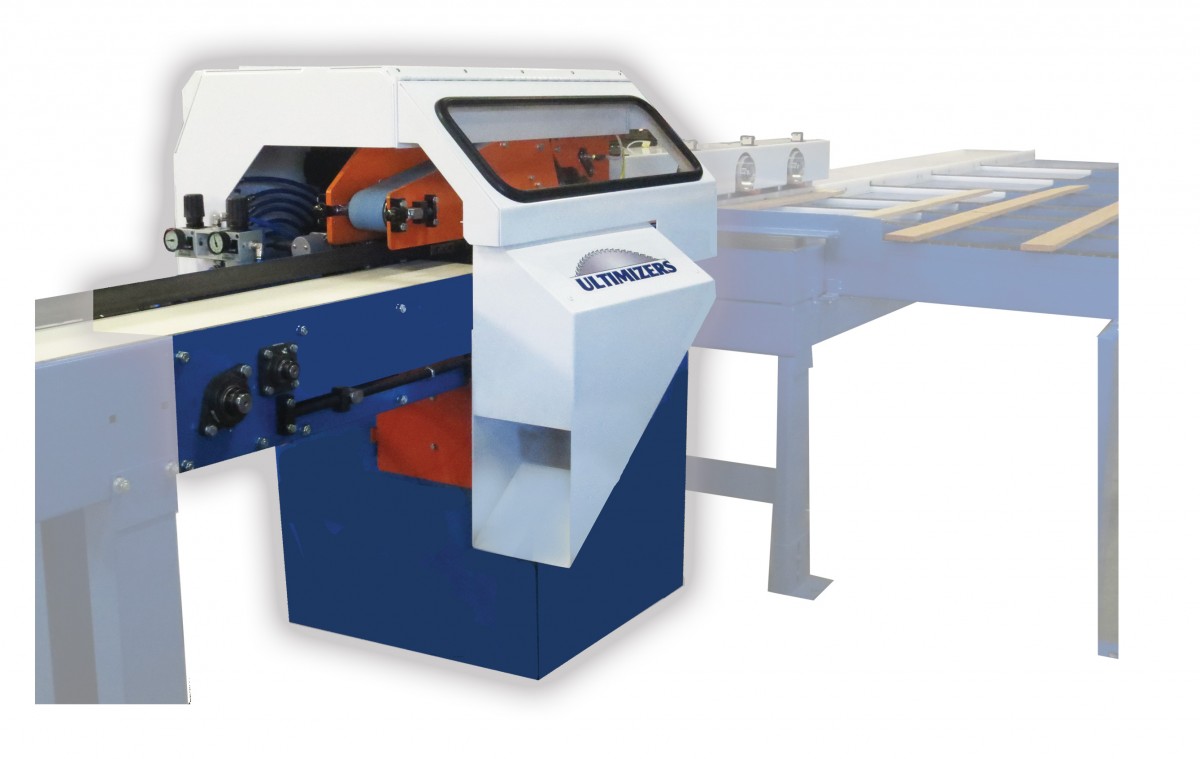

  • The 18U-SC7 is a high speed, durable and easily maintained cut-off saw.
  • Ramp times to full speed are measured in  milliseconds due to the single overhead drive belt and a lower idling roll case that has very little inertia.

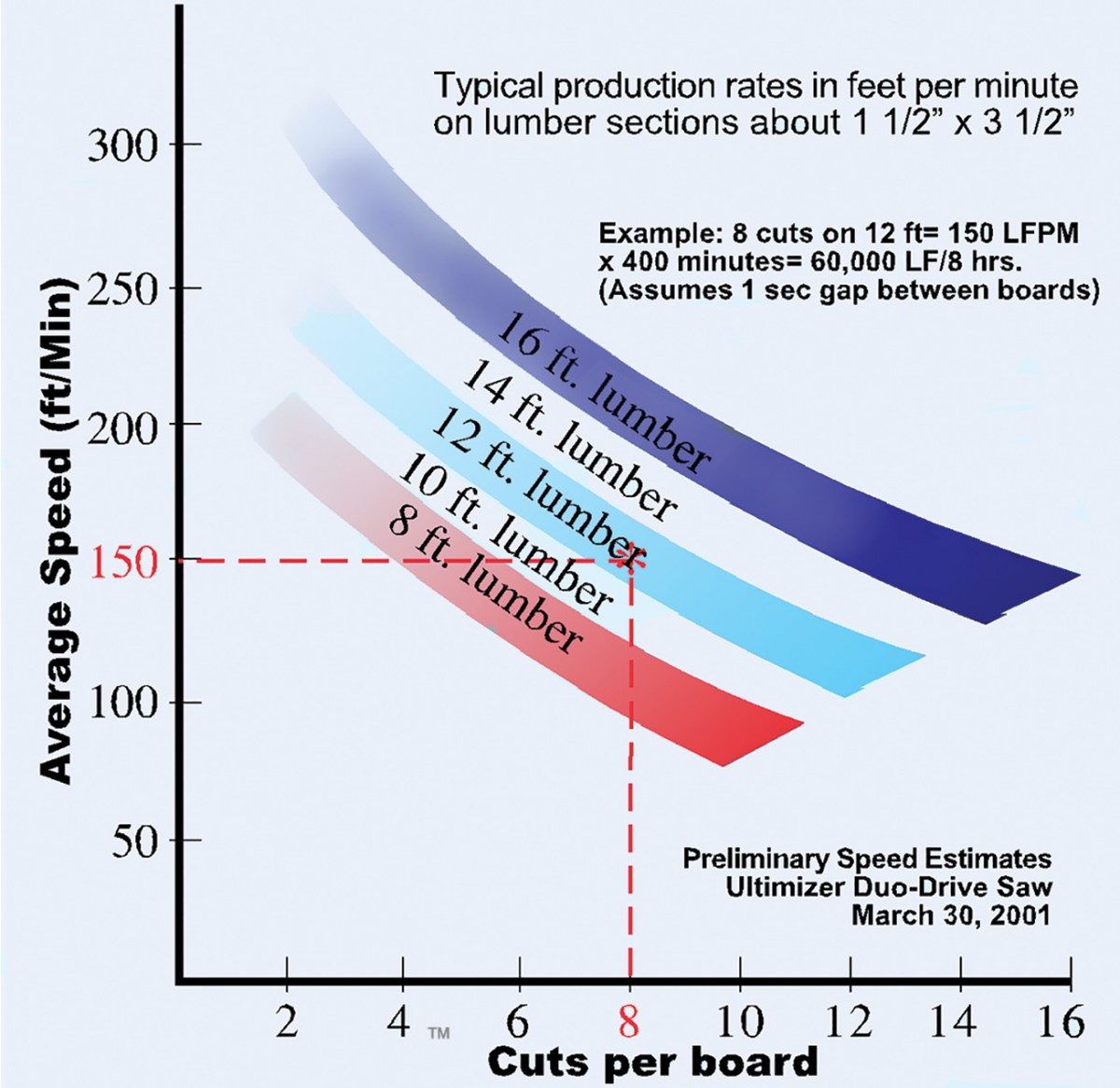

  • Cutting cycles as fast as 130 milliseconds increase production.
  • Waste is removed at the blade as it is cut using high pressure air blow-off jets.
Request a quote Call me

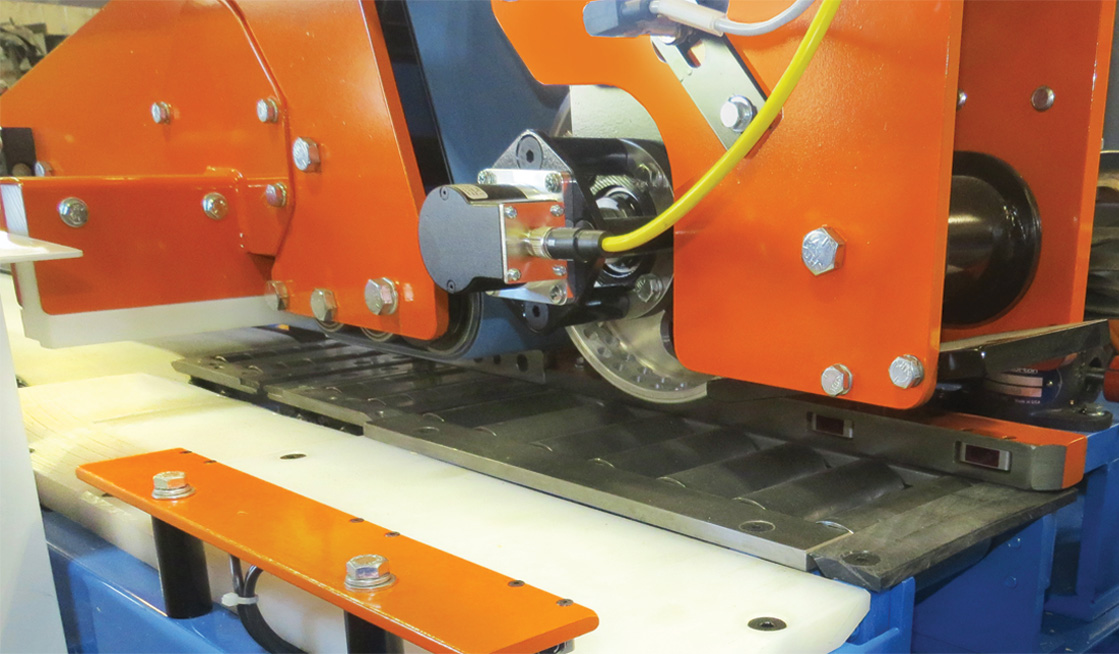

The patented top conveyor belt provides exceptional grip that resists slippage. The encoder near the blade provides very accurate measurements.

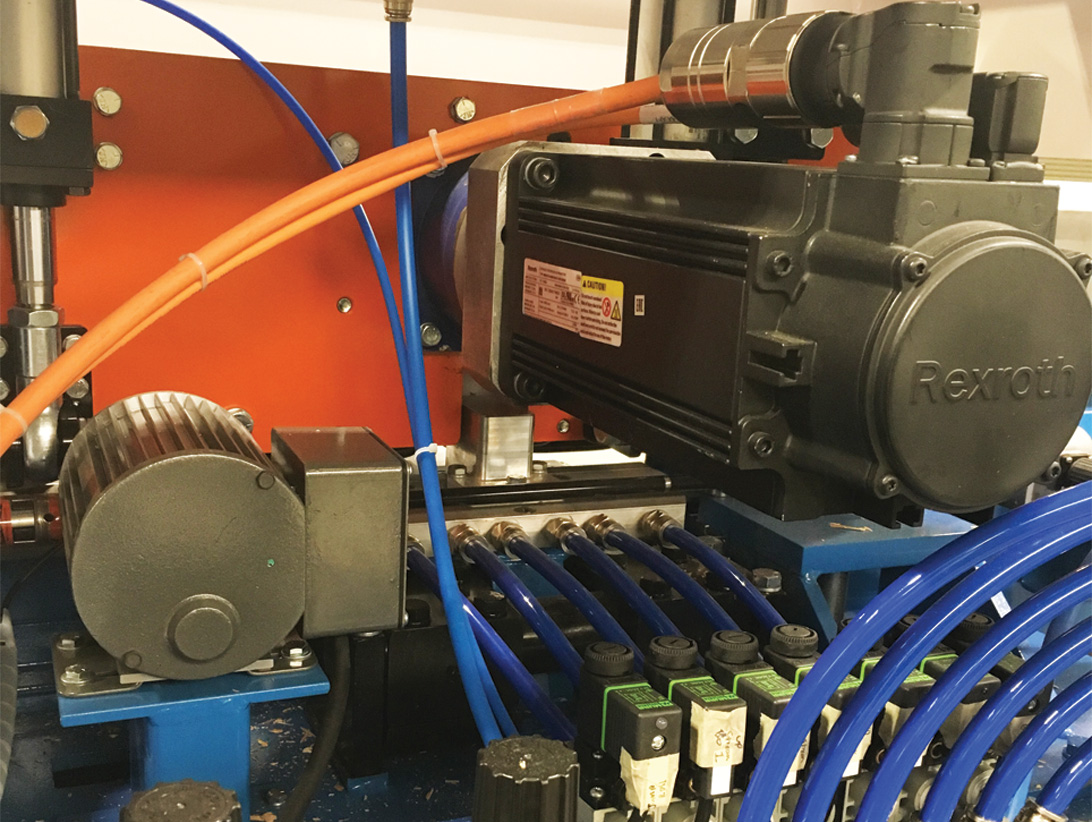

The patented top conveyor belt drive is servo driven with a direct gearbox making cut-to-cut moves exceptionally responsive and smooth.

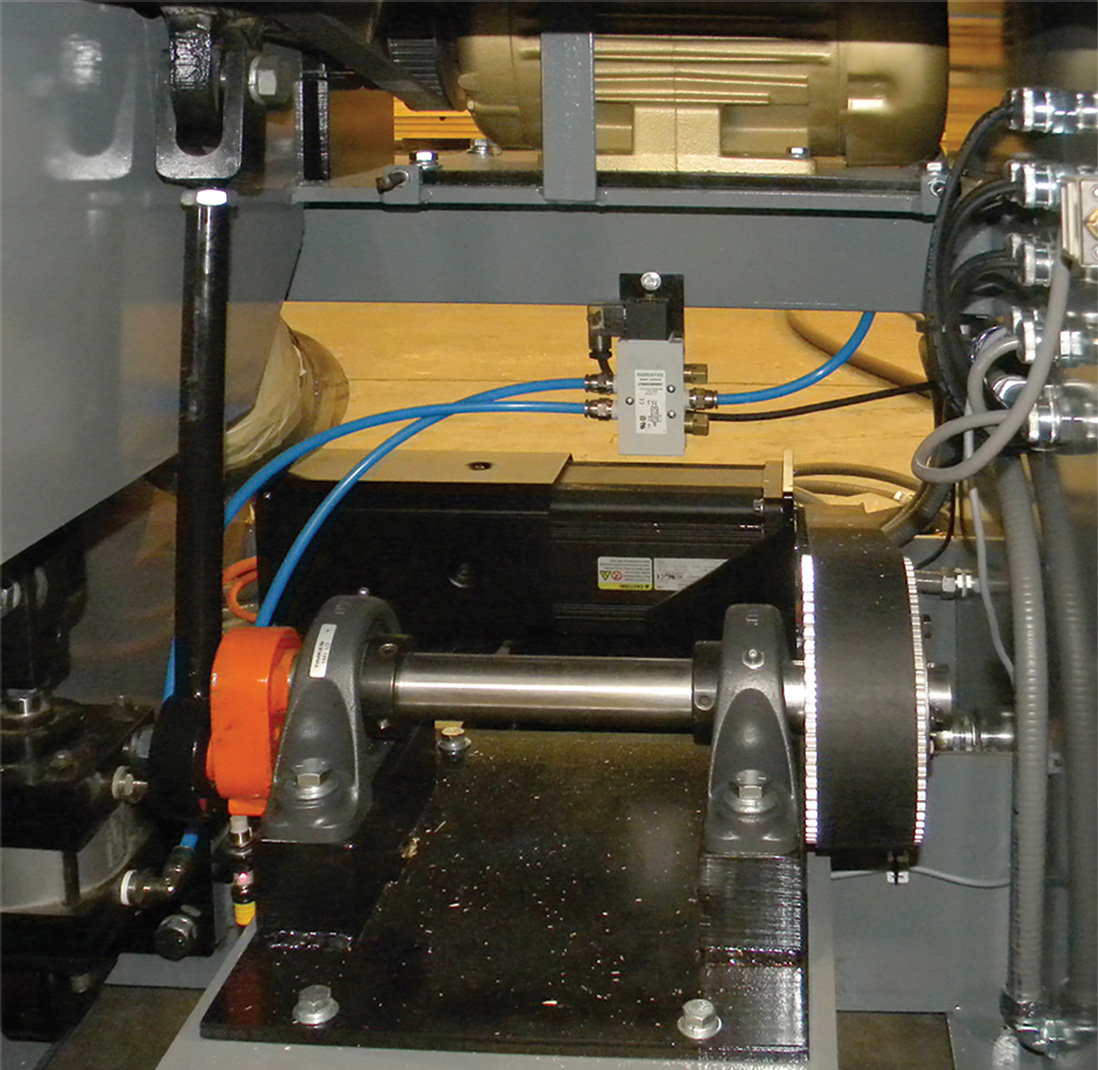

An additional servo motor runs the arbor crank actuation up and down. The centrifugal designs remains smooth even at extreme speeds.

An additional servo motor runs the arbor crank actuation up and down. The centrifugal designs remains smooth even at extreme speeds.

The blade motor is also servo controlled giving the user complete control of blade and cut speeds for optimum cut quality control.

  •



Large access panels and Windows based touch screen controls are key to ease of use and operator efficiency. On screen diagnostics cover all sensors, valves and drives.
